병원 혈액샘플 전용 이송 시스템

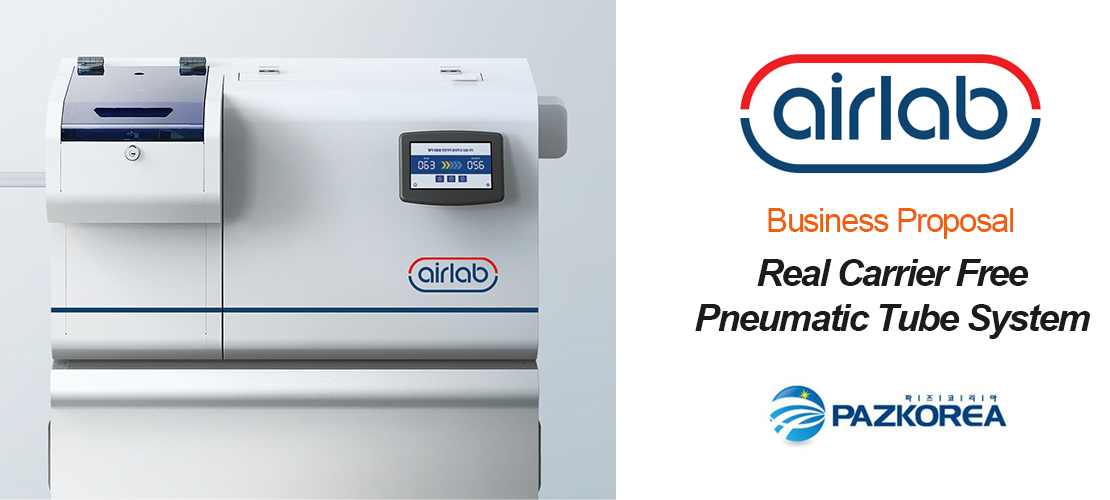

“에어랩” AirLab
1. Generation
Hospital Logistic System “AGE of Pneumatic Tube System”| Age | Introduction 1980 ~ 1990s |
Development 2000s |
Application 2010s |
Innovator Present |
|---|---|---|---|---|
| feature | In order to transfer to X-ray film, medical charts, blood samples, and so on.. | The X-ray film is transferred to the image transfer system, and the medical chart is replaced by an electronic chart | Problem with opening and closing the carrier cap more than a thousand times a day Medical Persons with Musculoskeletal Diseases |
Auto unload system Carrier cap is automatically open / 1,2,3 generation Only the blood sample transfers without carrier |
| error rate high | miniaturization start | RFID Application | Connectable with equipment | |
| frequency of use | +++ | ++ | + | + |
** It is best to use the 3RD Generation Auto-unload-station and the AurLab in parallel.
2. Products
Hospital Logistic System Blood sampling room - Diagnostic laboratory (AirLab System)
A system that automatically sends and receives the only Blood Tube through 25mm pipe
| Where | Blood collection room, emergency room, diagnostic laboratory etc. of hospital |
|---|

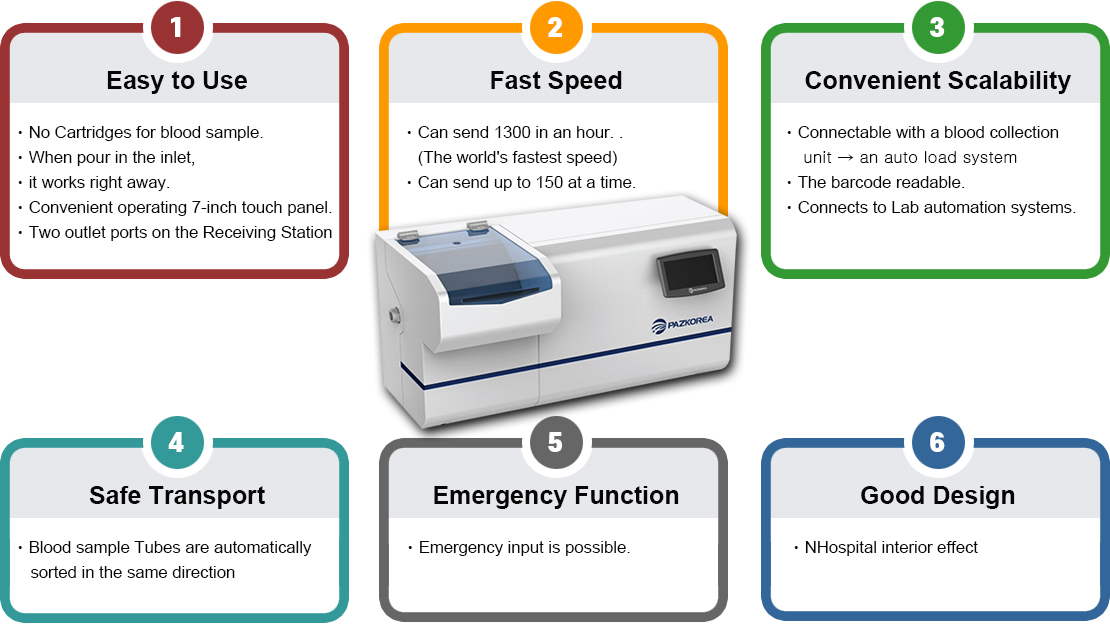

1. No Carrier for blood sample, No Cartridges at all.
2. When pour in the inlet, it works right away.
3. Can send up to 150 at a time.
4. Connectable with a blood collection unit → auto load system
5. Can connect two or more Vessels to one Receiving Station.
6. Blood sample Tubes are automatically sorted in the same direction
7. Can send 1300 in an hour. (The world's fastest speed)
8. Emergency input is possible.
9. The barcode readable
10. Convenient operating 7-inch touch panel.
11. Good Design
12. Two outlet ports on the Receiving Station.
13. Connects to Lab automation systems.
2. When pour in the inlet, it works right away.
3. Can send up to 150 at a time.
4. Connectable with a blood collection unit → auto load system
5. Can connect two or more Vessels to one Receiving Station.
6. Blood sample Tubes are automatically sorted in the same direction
7. Can send 1300 in an hour. (The world's fastest speed)
8. Emergency input is possible.
9. The barcode readable
10. Convenient operating 7-inch touch panel.
11. Good Design
12. Two outlet ports on the Receiving Station.
13. Connects to Lab automation systems.

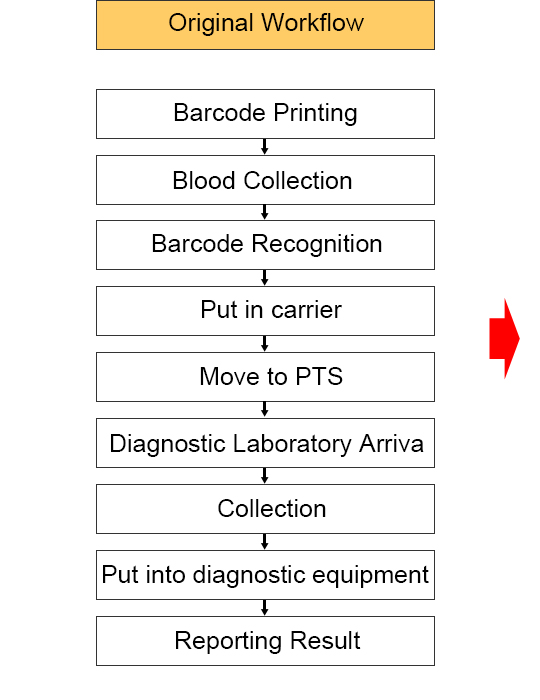

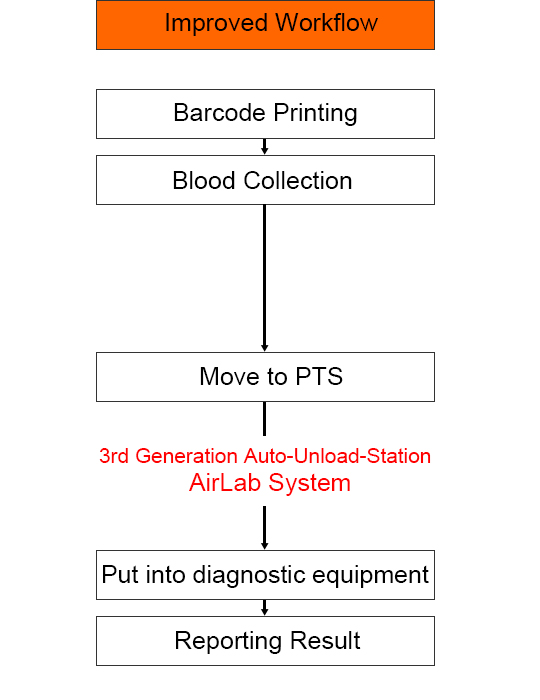

Blood sampling room - Diagnostic laboratory (AirLab System), Improved Workflow
Blood sampling room - Diagnostic laboratory (AirLab System)
※ Specifications
| AirLab System | |
|---|---|
| How to | Pouring a large amount of blood samples and sending them one by one(Up to 150) |
 |
|
| Blood tube direction setting | Automatically align direction |
| Air | Compressor |
| Quantity | up to 900~1300 sample tubes per hour |

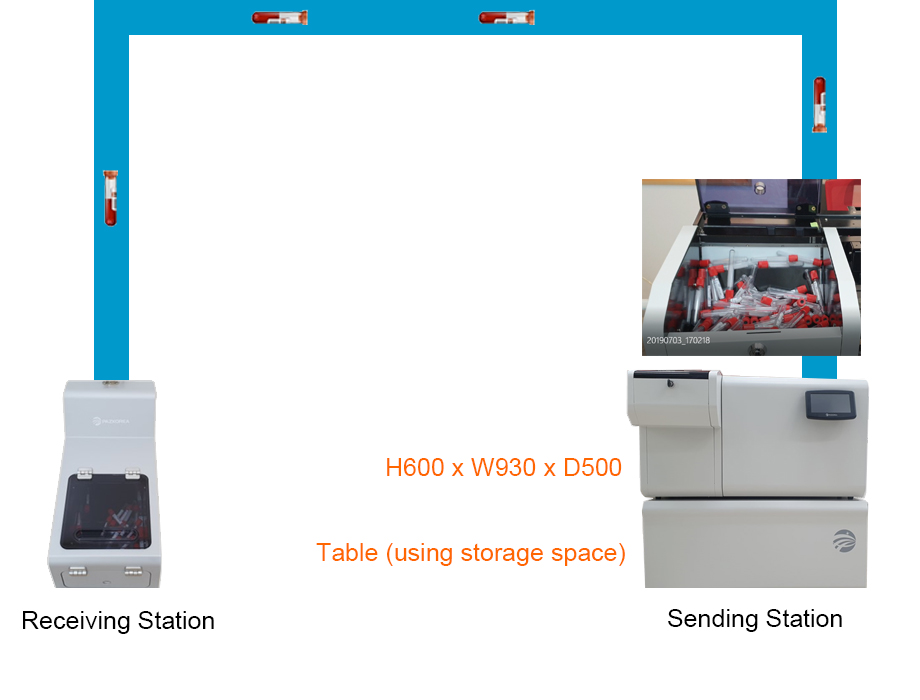

| Dimensions | H600 x W930 x D500 |

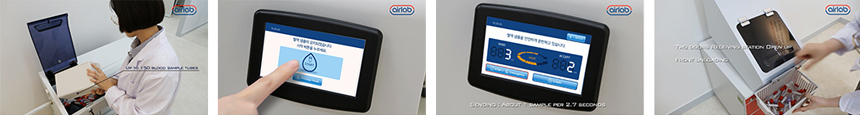

| Key pad | 7” touch screen |
| Interlocking with Blood Collection Table |
possible |
| Separate monitoring system | Yes (Main operation function, Log Data USB output possible) |
| Emergency Sending | possible |
| Receiving Station | Two Doors |
Blood sampling room - Diagnostic laboratory (AirLab System)
Blood sampling room - Diagnostic laboratory (AirLab System)
